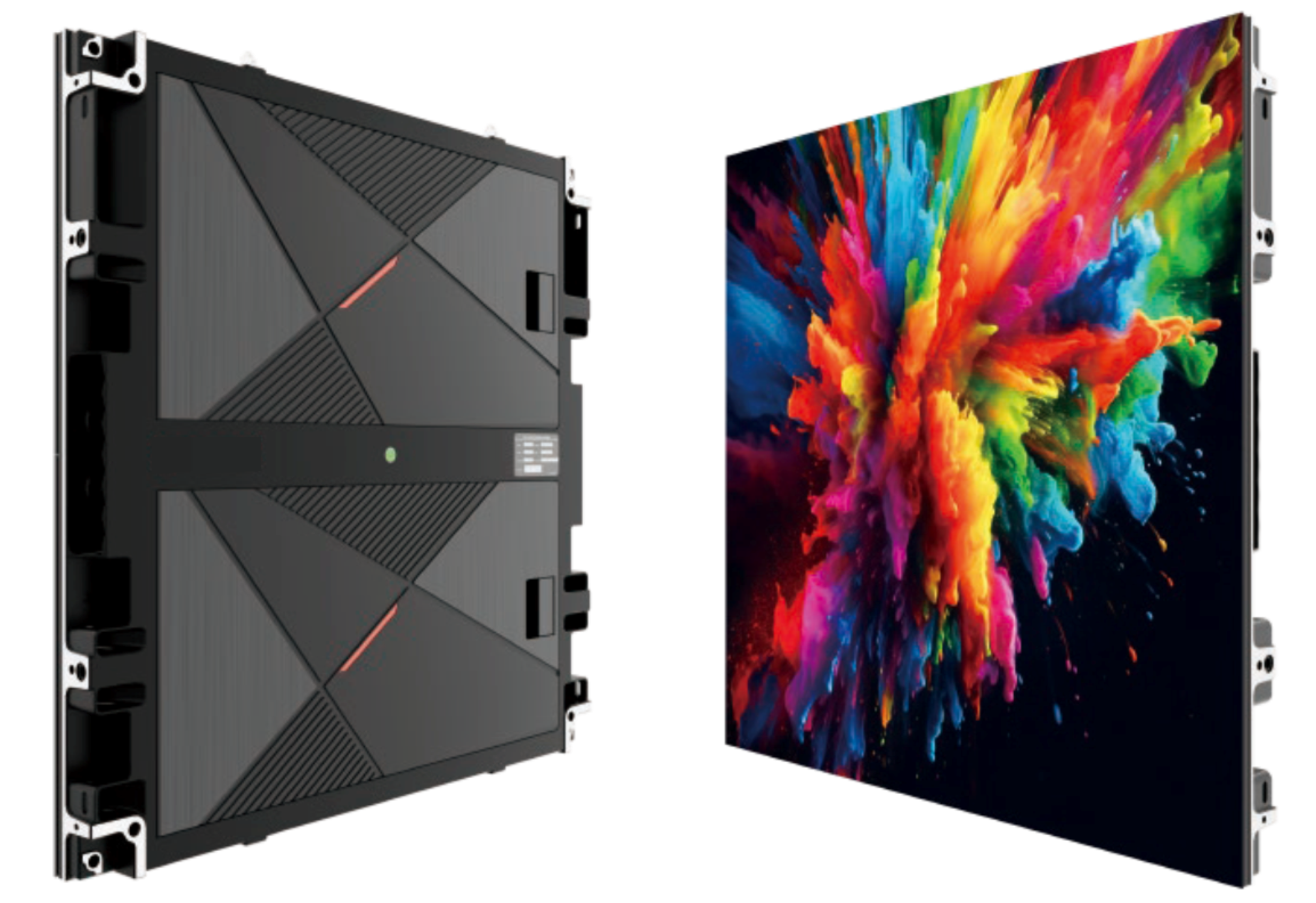

Omni
OMNI Indoor LED Display, Built for Any Shape You Need
What Makes the Omni Different

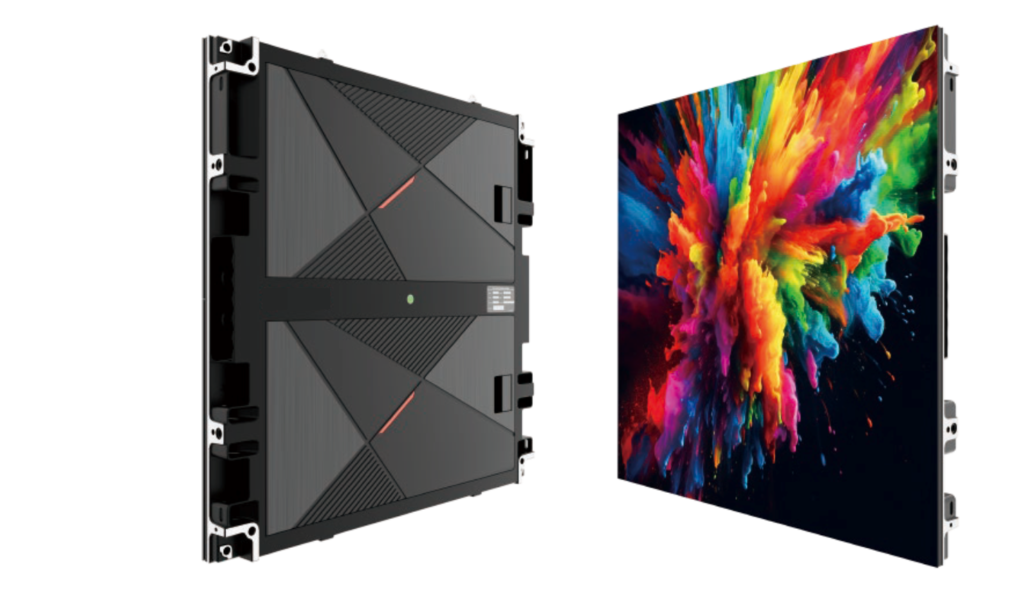

You Get Five Cabinet Sizes, and They All Work Together
Standard LED walls come in one cabinet size. You tile them in a grid, fill the rectangle, and that's the display. OMNI works differently. Five cabinet sizes, 500u00d7250, 500u00d7500, 750u00d7250, 1000u00d7250, and 1000u00d7500mm, can be combined within a single display. Stack them, alternate them, offset them. The wall shape stops being a constraint and starts being a design decision.

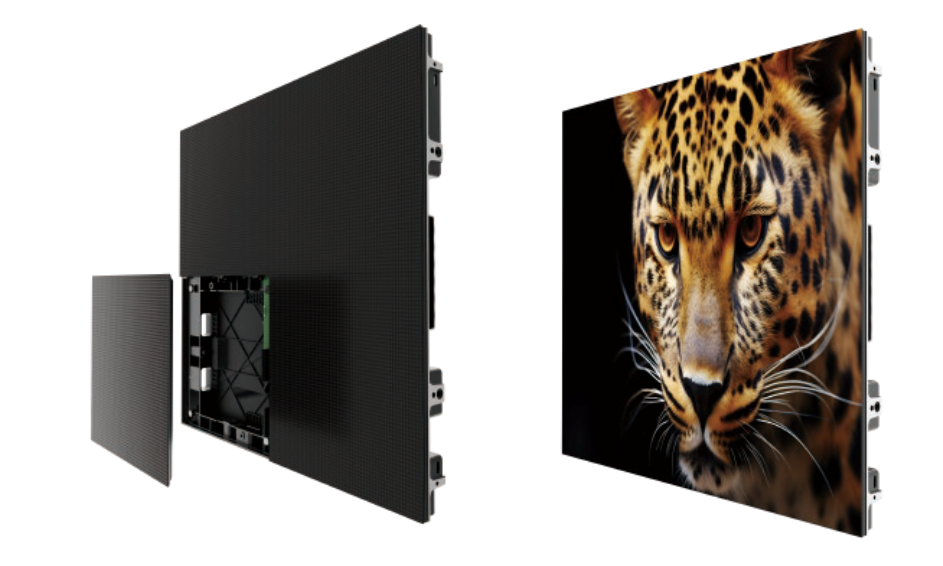

Curves, Corners, Columns
Most LED systems need custom engineering the moment a client asks for anything other than a flat rectangle. OMNI handles concave curves, convex arcs, right-angle L-shapes, and full 360-degree columns using the same standard cabinets. Inner and outer curves are both supported. Corner splicing is clean. Three-dimensional box structures are possible. None of it requires anything beyond the standard cabinet system.

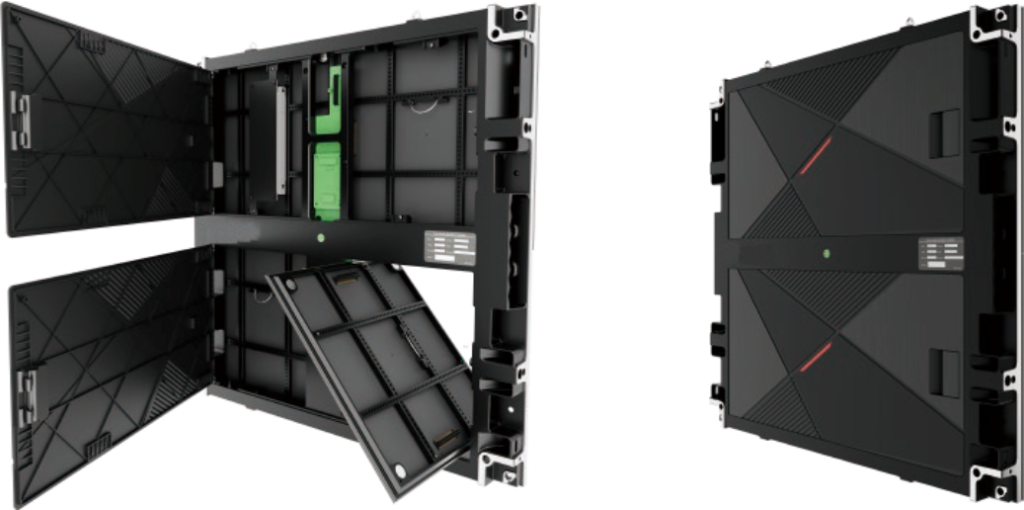

Thin, Light, and Built for Interior Spaces
At 20 kg per square meter and 39.5 mm deep, OMNI sits close to the wall and doesn't dominate the room it's in. Die-cast aluminum cabinets keep the weight down without sacrificing rigidity. There are no fans, no moving parts, and no mechanical components that wear out or make noise, which matters in retail environments, hotel lobbies, corporate reception areas, and anywhere else where the display shares a room with people.

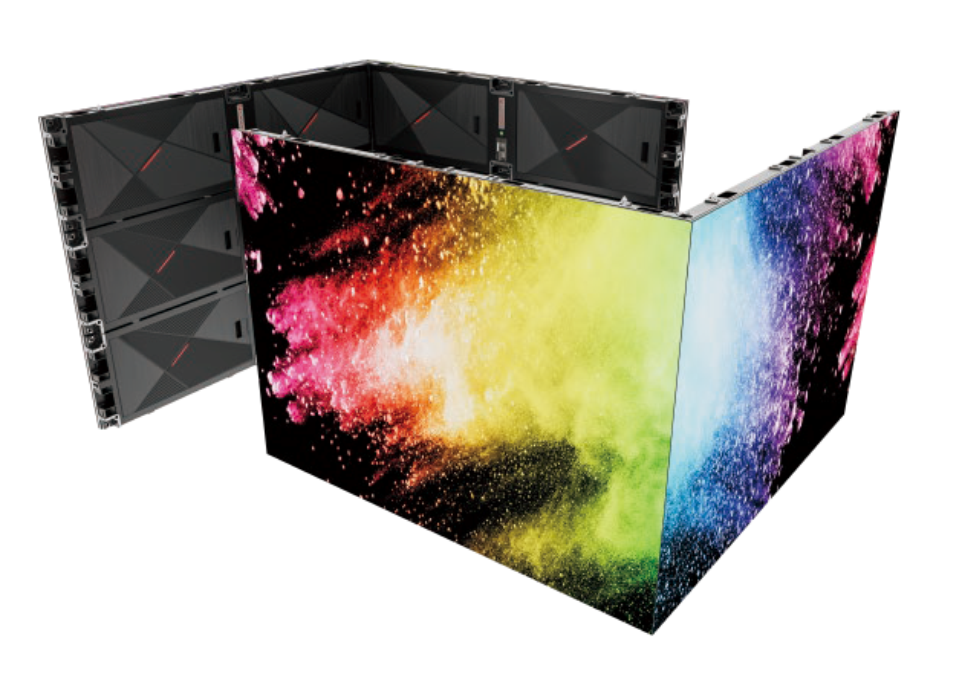

A Refresh Rate That Handles Anything You Put On It
At 7,680 Hz on the 1.9, 2.6, 2.9, and 3.9 models, motion artifacts and screen flicker are not a concern regardless of content type. Fast transitions, broadcast video, real-time data, and animations all render cleanly. The 14-bit grayscale processing holds detail across the full tonal range, so shadow and highlight separation stays intact even when brightness is dialed back for a dimmer space.

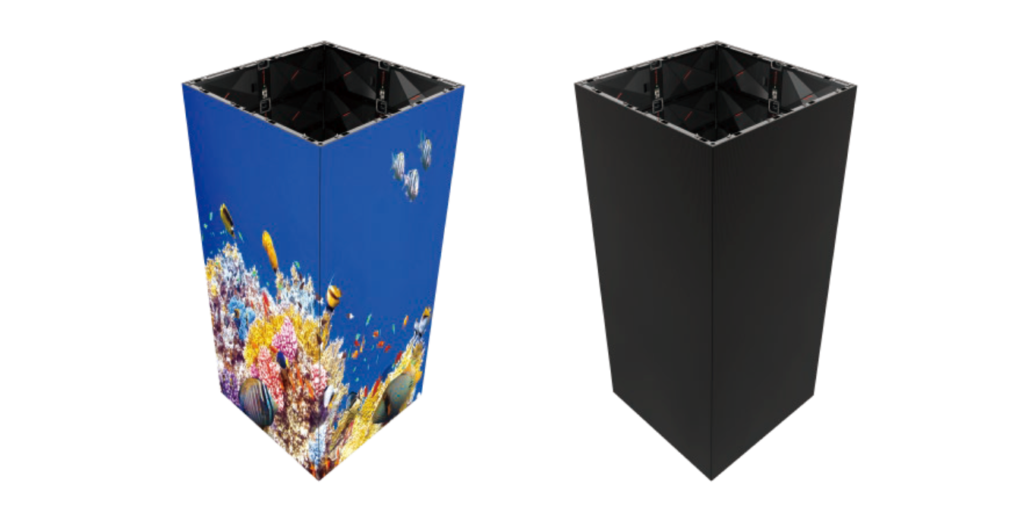

Brightness That Adjusts to the Room
The standard configuration reaches 1,000 nits on the 1.9 and 2.6 models, with color temperature adjustable anywhere from 3,000K to 10,000K. For brighter environments, sun-filled atriums, high-ambient retail floors, or display-facing windows, the optional high-brightness configuration pushes up to 3,000 nits on the 1.9, 2.6, 2.9, and 3.9 models. The display matches the room's lighting rather than fighting it.

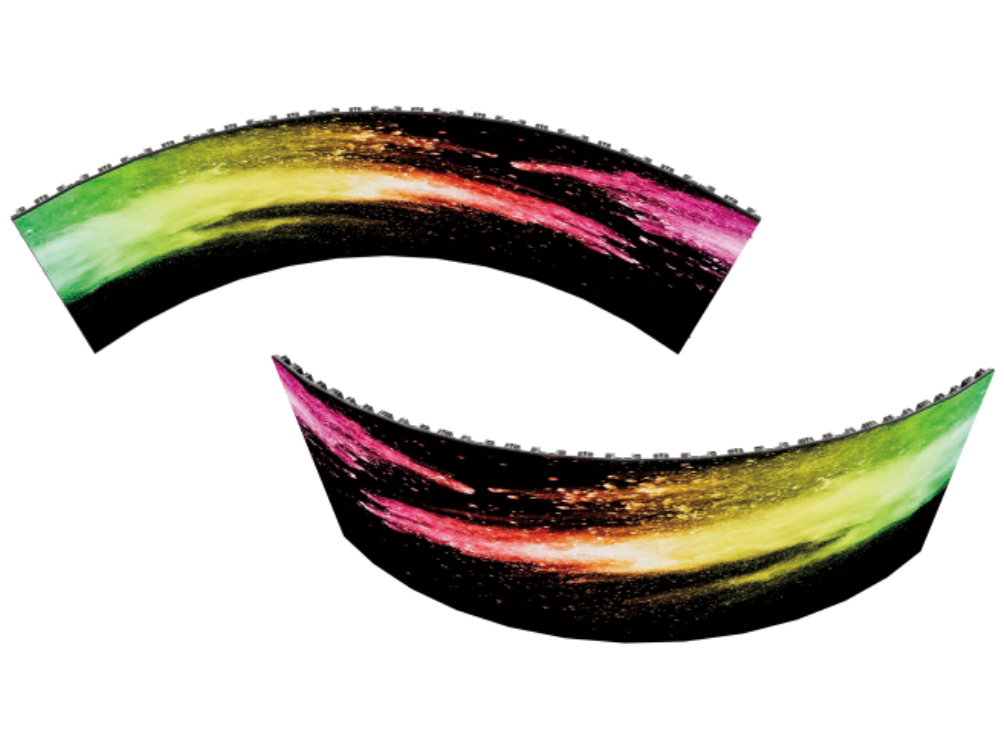

Cabinets That Rotate for Vertical and Diagonal Runs
At 20 kg per square meter and 39.5 mm deep, OMNI sits close to the wall and doesn't dominate the room it's in. Die-cast aluminum cabinets keep the weight down without sacrificing rigidity. There are no fans, no moving parts, and no mechanical components that wear out or make noise, which matters in retail environments, hotel lobbies, corporate reception areas, and anywhere else where the display shares a room with people.
Every Display Includes Lifetime Benefits
5 Year Factory Parts Warranty
We stand by what we build. Replacement parts are available for five full years.
Lifetime Support
Whether it's been a month or a few years, our support team is reachable by phone or message.
Lifetime Cloud Access
Pull up your display remotely from any device. No subscription needed and no access window. It's open whenever you are.
Lifetime Software
Viplex is included and licensed for the life of the display. Once it's yours, it stays yours.
Easy Assembly
The modular design is built for straightforward setup. No specialized crew required for maintenance or adjustments.
High Definition
Among the highest refresh rates in the industry, the image quality holds with sharp text, clear visuals, and video that plays properly.
Extreme Brightness
10,000+ nits puts this display well above what direct sunlight can compete with. Full daylight, no visibility issues.
Training
From the first day of operation to routine upkeep, we make sure your team understands the display thoroughly before we wrap up.
Content Creation
Our designers handle templated content for your display. It looks good on screen, and you don't have to figure it out yourself.
Multiple Communication Options
Wired, Wi-Fi, or cellular, you decide what fits. All three options are under the contract and covered for the display's full lifespan.
60 FPS
Full-motion content at 60 frames per second. Smooth, clean playback with no dropped frames.
Trillions of Colors
24-bit color depth keeps your content looking exactly as it was made. Accurate color, true to the original, every time.
24-Hour US Technical Support
Domestic support at any hour, no routing overseas and no morning wait. Training content is also available online whenever it's needed.
Unlimited Software Seats/Licenses
All three portals, Creative Library, Custom Content, and Corporate Creative, are included for your whole team with no seat restrictions or added costs.
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Omni Specifications
All specifications subject to change.
| Parameters | OMNI 1.2 | OMNI 1.5 | OMNI 1.9 | OMNI 2.6 | OMNI 2.9 | OMNI 3.9 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.5625 | 1.953 | 2.604 | 2.907 | 3.906 |
| Pixel Density (pts/mu00b2) | 640,000 | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 |
| Module Resolution | 200×200 | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Brightness Max (nits) | 600 | 600 | 1,000 | 1,000 | 800 | 800 |
| Max Power (W/mu00b2) | 480 | 480 | 560 | 560 | 560 | 560 |
| Avg Power (W/mu00b2) | 160 | 160 | 187 | 187 | 187 | 187 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 7,680 | 7,680 | 7,680 | 7,680 |
| Module Depth | 39.5mm | |||||
| Weight | 20 kg/m² |
