Holon Outdoor LED Display, No Crane Required
What Makes the Holon Different
You Don't Need a Crane for This
Most outdoor LED installations come with a long checklist, permits, lifting equipment, a full crew, and a timeline that stretches for days. Holon skips all of it. Each module is 1' u00d7 2' and weighs 6.2 kg with the frame included. One person can carry it, mount it, and connect it by hand. A small to mid-size display can be up and running in a few hours, whether it's a brand-new installation, a retrofit over an existing sign, or an upgrade to an old LED wall.
Every Module is a Complete Unit
The name Holon comes from the idea of something that is both whole on its own and part of something larger. That's exactly how each module works. Power supply, control electronics, and LED panel are all packed into a single 1' u00d7 2' unit. Plug it in, lock it to the frame, and it runs. Stack as many as the display requires, and the whole wall comes together the same way, module by module, with no central wiring mess and no complicated system setup.
10,000+ Nits with Sunlight-Blocking Louvers
Holon is built to be read outdoors, in daylight, without squinting. Extended louvers on the face of each module physically block direct sunlight from washing out the LEDs. The result is a 26,000:1 contrast ratio that holds up on the brightest days, backed by a 3,840 Hz+ refresh rate that keeps fast-moving content smooth and clean.
Fanless. Runs Cool Anyway.
No moving parts means no fan failures, no noise, and no maintenance calls for mechanical issues. Holon keeps temperatures in check through engineering rather than airflow. Each module draws only around 30W, so heat generation is low to begin with. A 20mm air gap between the power box and the module stops heat from stacking up. The power supply itself is bonded with heat-conductive silicone and pressed tight against a thick aluminum backplate, pulling heat away from the components and spreading it across the surface. High-efficiency power supplies running under 50% load do the rest.
Service from the Front or the Back, No Tools
Every Holon module comes with integrated handles and a safety cable. Pull it from the front or pull it from the rear, either way works. There are no tools involved and no special training required. If a module needs replacing, swap it out and move on. The Holon Max configuration takes this further for larger displays, centralizing power and signal distribution so fewer components need to be managed individually.rn
One Mainbox Runs the Whole Display
The Mainbox combines the LED controller, power distribution, and optional 4G/Wi-Fi communication into one compact outdoor-ready enclosure. It mounts to the wall or the frame, connects to the display, and handles everything from there, including a built-in brightness sensor that adjusts the display automatically based on ambient light. From a phone, tablet, or PC, you can monitor content playback, power status, signal flow, and individual pixel health across the entire screen without stepping outside.
Every Display Includes Lifetime Benefits
5 Year Factory Parts Warranty
Five years of parts coverage means repairs don't become a sourcing problem. What's needed is available when it's needed.
Lifetime Support
Technical questions don't have a deadline. Our team picks up by call or message whenever something comes up, for as long as you have the display.
Lifetime Cloud Access
Log in and monitor your display from wherever you happen to be. No access fees, no subscription standing between you and your dashboard.
Lifetime Software
Viplex comes with every display and stays yours for good. No license expiry, no upgrade cost, it runs for as long as the display does.
Easy Assembly
Plug-and-play modular panels mean you don't need a specialized crew to set things up, troubleshoot, or make changes.
High Definition
The refresh rate keeps everything looking sharp, text, images, and video all hold their quality the way they were meant to.
Extreme Brightness
10,000+ nits means full sunlight doesn't wash it out. The display performs the same regardless of what time of day it is.
Training
We sit with your team and go through everything. How to run it daily, how to maintain it. No gaps left by the time we're done.
Content Creation
Our design team puts together templates that are built for your specific display. Good-looking content without putting that work on your plate.
Multiple Communication Options
Hardwired, Wi-Fi, or cellular, the choice is yours based on what your setup needs. All three are contract-covered for life.
60 FPS
Full-motion video plays at 60 frames per second. It looks smooth because it runs smooth.
Trillions of Colors
With 24-bit color depth, the display reproduces your content accurately. What you designed is what people see.
24-Hour US Technical Support
Support is available any hour, US-based. No waiting on overseas time zones, and training videos are up online around the clock as a backup.
Unlimited Software Seats/Licenses
Creative Library, Custom Content, and Corporate Creative Portals are all included and open to your team, with no per-seat charges.
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.

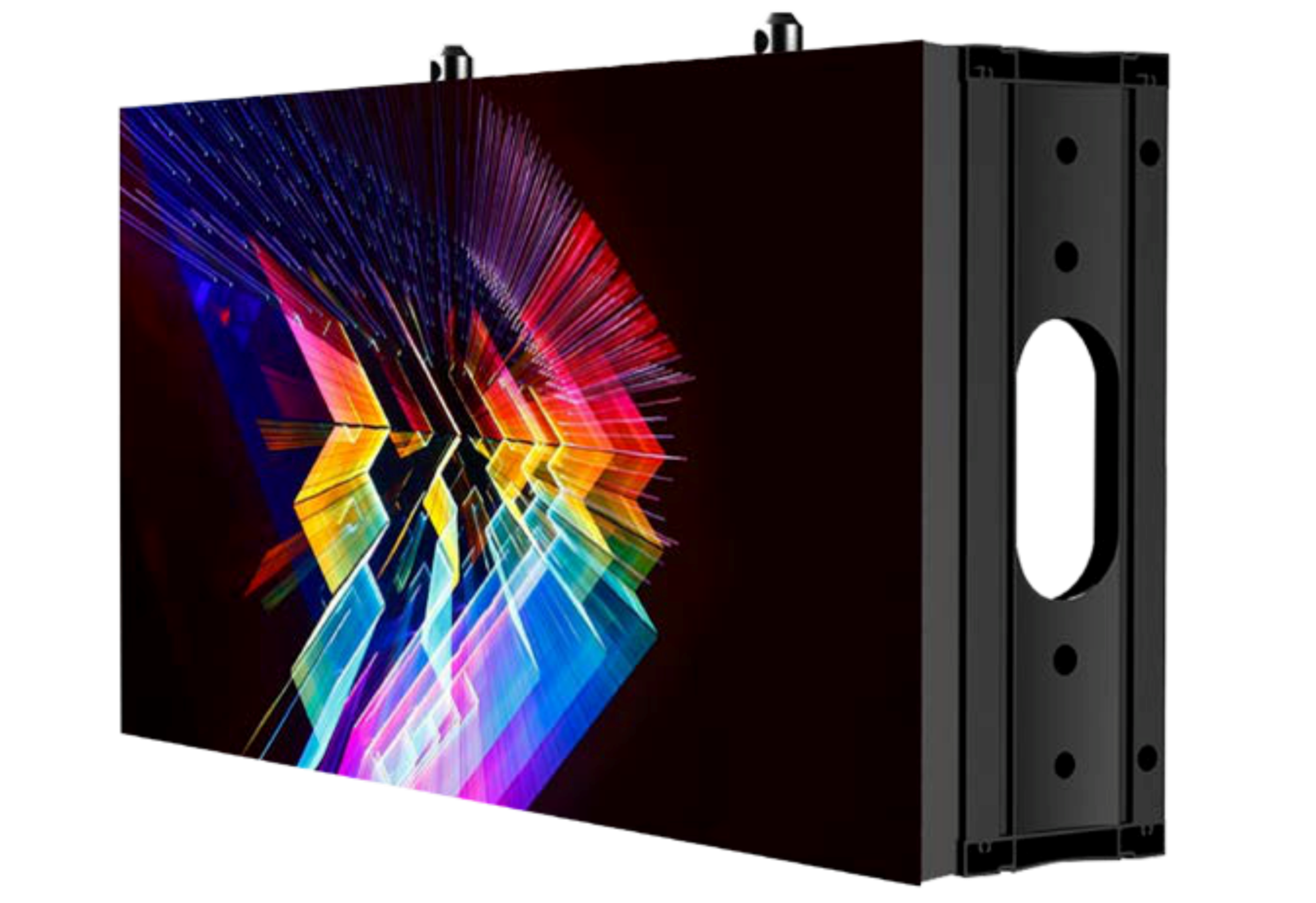

Holon Specifications
All specifications subject to change.
| Parameters | Holon 6.35mm | Holon 8.964mm |
|---|---|---|
| Pixel Pitch | 6.35 mm | 8.964 mm |
| LED Package Type | SMD + Lens | SMD + Lens |
| Pixel Density (dots/mu00b2) | 24,800 | 12,444 |
| Module Dimensions | 1' × 2' | 1' × 2' |
| Module Weight | 8.8 lb (4 kg) | 8.8 lb (4 kg) |
| Refresh Rate | u2265 3,840 Hz | u2265 3,840 Hz |
| Brightness | u2265 10,000 nits | u2265 10,000 nits |
| Contrast Ratio | 26,000:1 | 26,000:1 |
| Ingress Protection | IP65 | IP65 |
| Operating Temperature | -40°C to +60°C | -40°C to +60°C |
| LED Life-Span | 100,000 hours | 100,000 hours |
