Max Series
Max Indoor Commercial LED Display (P1.25 ~ P4)
What Makes the Max Series Different

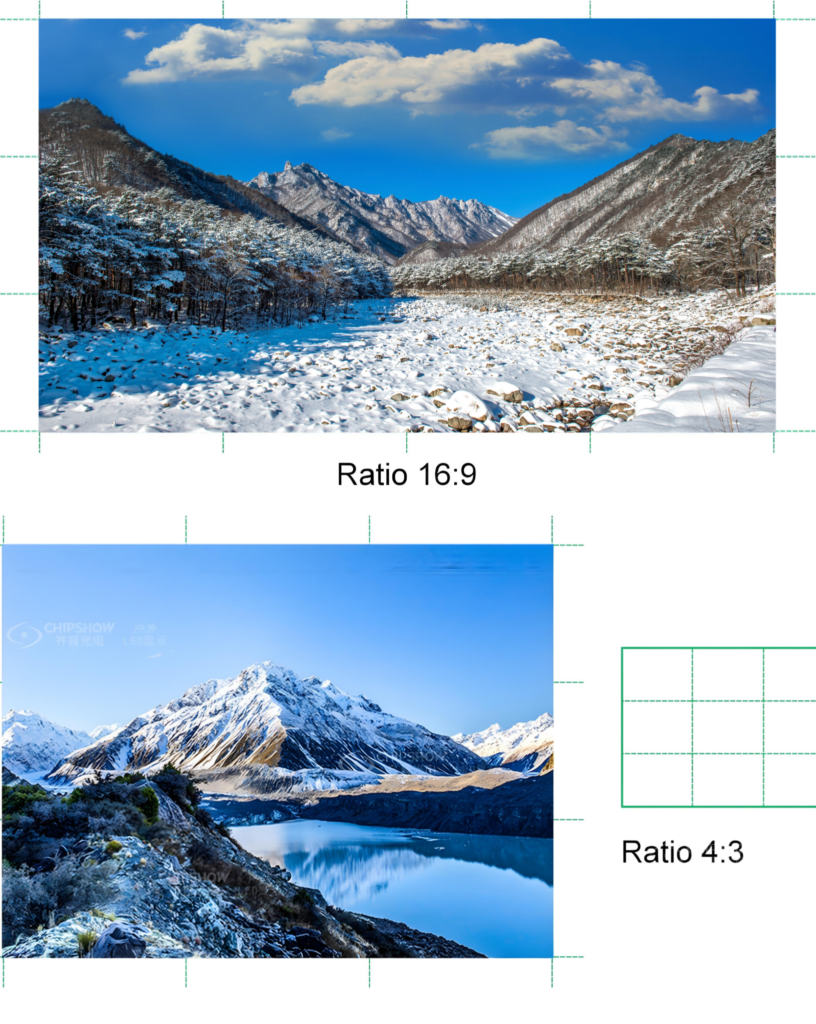

High Precision u2014 Same Ratio as Video Source
Max Series sports the same proportion as standard video sources, making it the most trusted recommendation for directly replacing LCDs. 640u00d7480mm cabinet seamlessly assembles into 4:3 and 16:9 large screens.

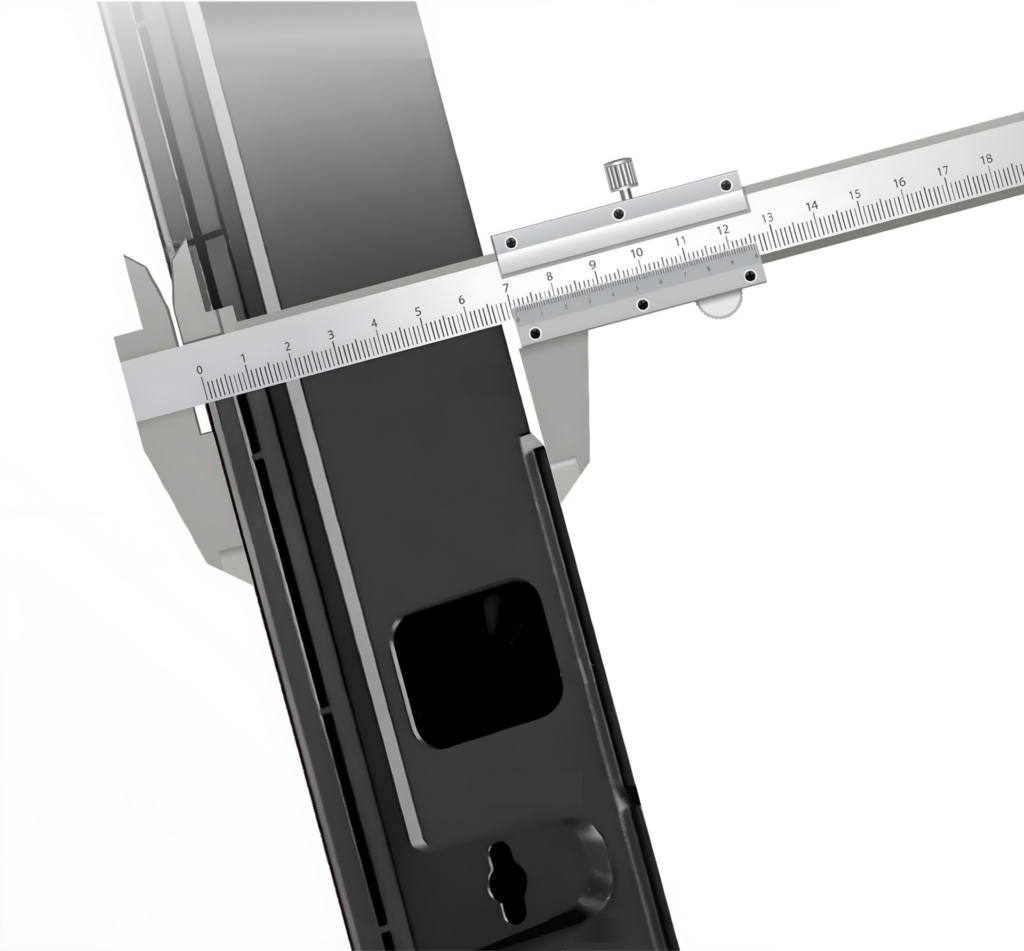

Ultra-Light & Thin Die-Cast Aluminum
Lightweight die-casting aluminum cabinet makes the Max Series significantly lighter than comparable products. Mounts directly onto any wall surface, saving space and labor. Flat, clean appearance u2014 easy to install and disassemble.

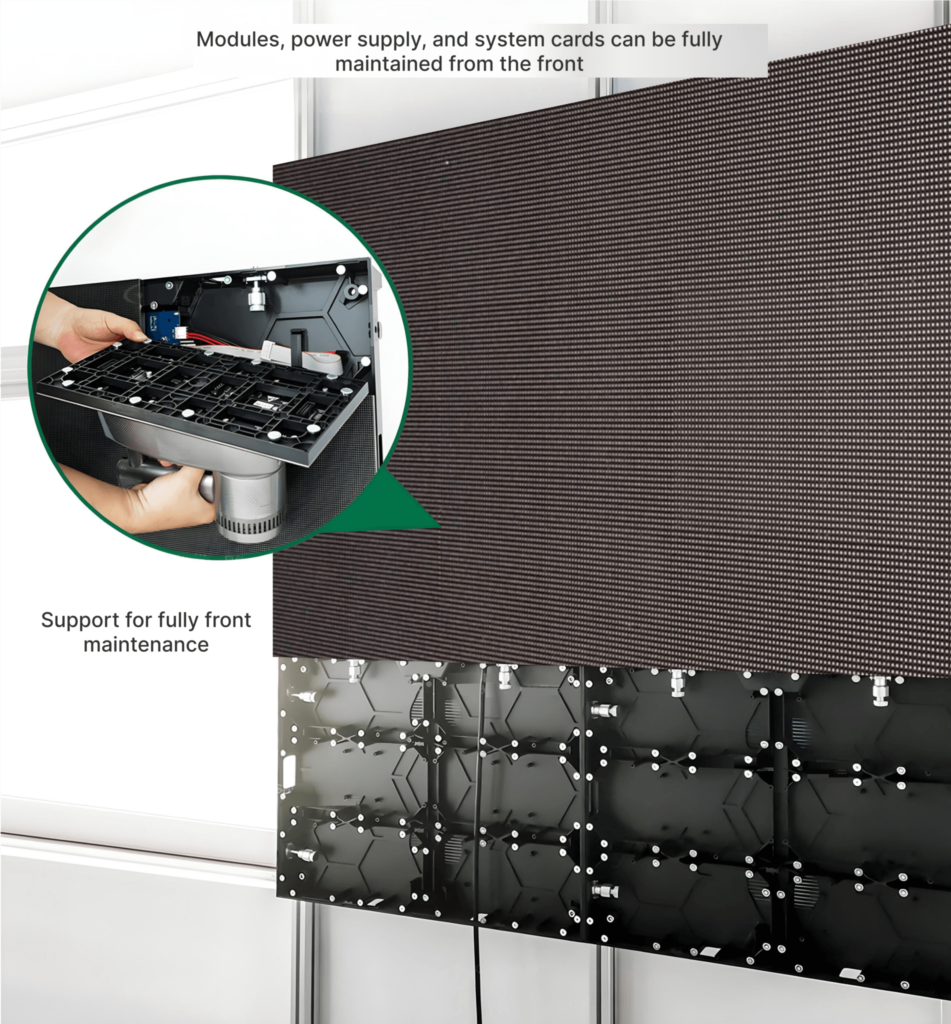

Wall-Mounted Front Service
All modules, power supply units, and cards are front-accessible. Simple internal wiring helps users splice the cabinets together. No rear access required u2014 ideal for permanent wall installations.

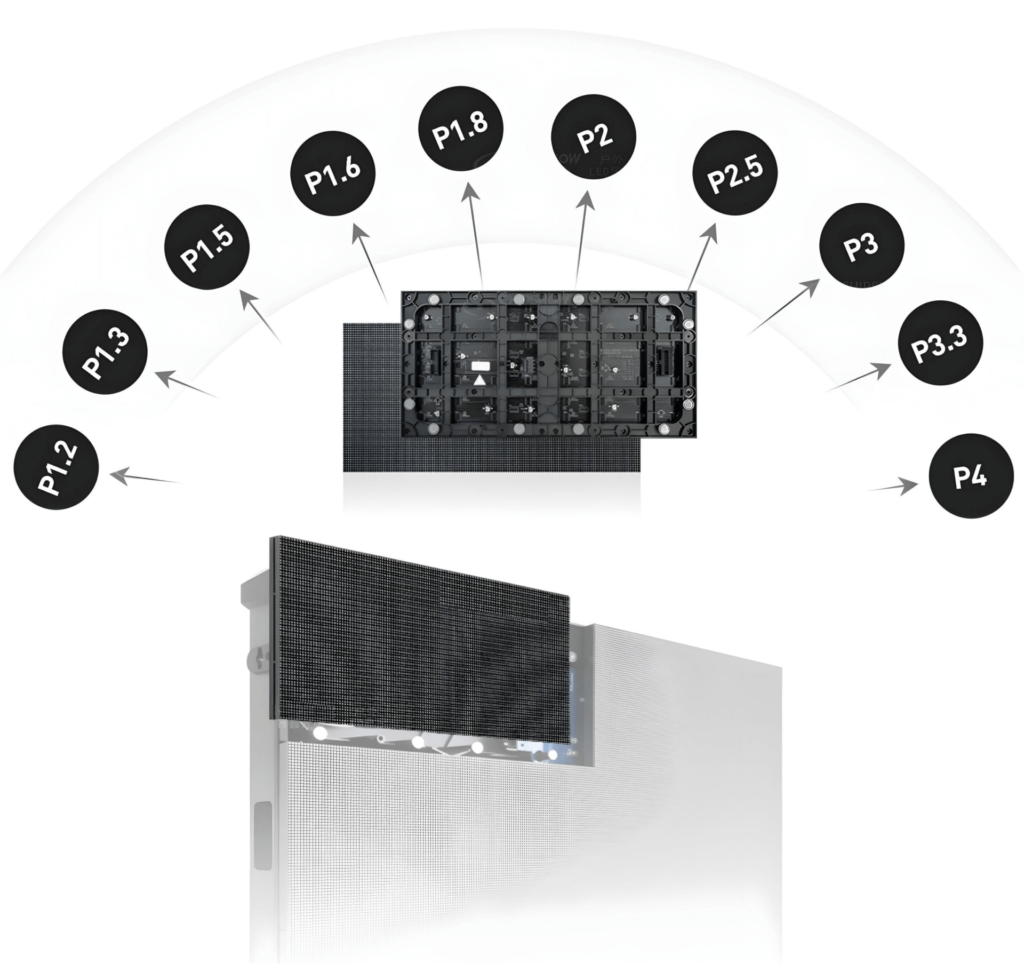

High Grayscale, Refresh Rate & Brightness
High-end IC design ensures superior grayscale performance, exceptional refresh rates (1920u20133840Hz), and outstanding brightness u2014 with excellent heat dissipation, no noise, energy savings, and environmental protection.

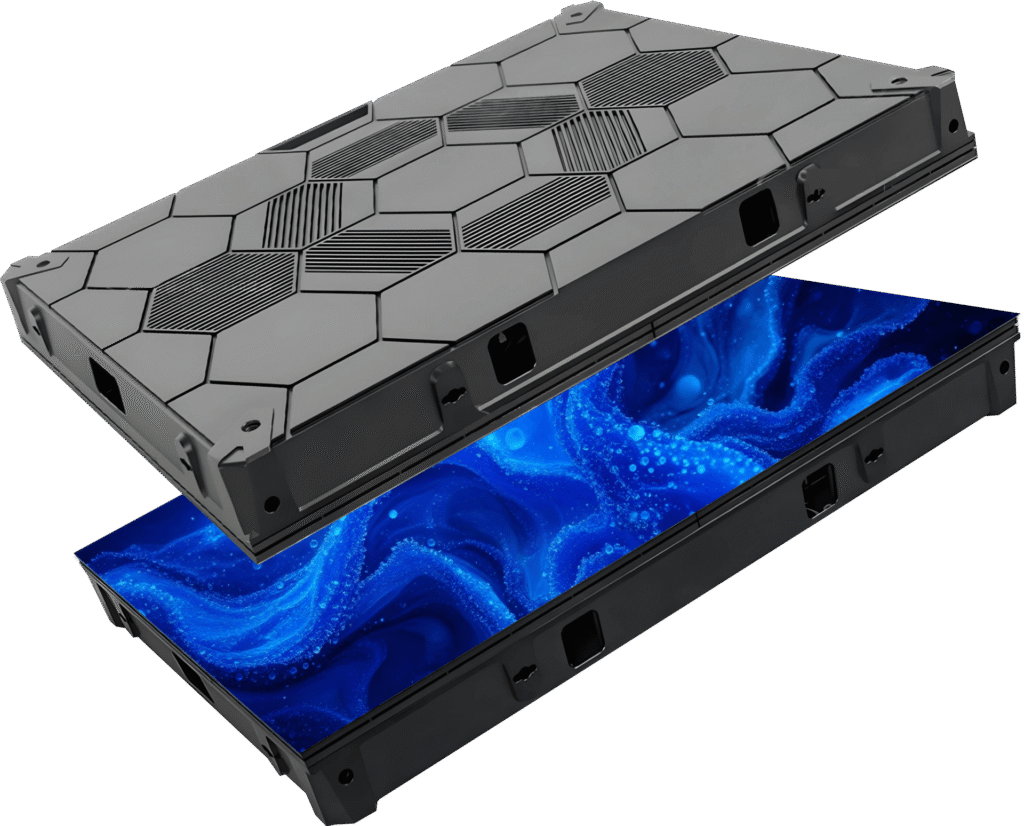

2K/4K/8K Compatible
Compatible with 2K, 4K, and 8K content pipelines. The same cabinet system scales from a single display to a full video wall without any additional hardware changes.
Every Display Includes Lifetime Benefits
5 Year Factory Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits of brightness
Training
We provide training on all aspects of the sign from maintenance to daily use
Content Creation
Our design team can help you create stunning templated designs
Multiple Communication Options
Hardwired, WiFi Modern, or Cellular Modem with a lifetime contract
60 FPS
Smooth full-motion video at 60 frames per second
Trillion of Colors
Full 24-bit color depth for lifelike, accurate color reproduction
24 Hour US Technical Support
No overseas time zone issues. Repository of training videos available on internet 24/7
Unlimited Software Seats/Licenses
Creative Library, Custom Content available, Corporate creative content portals

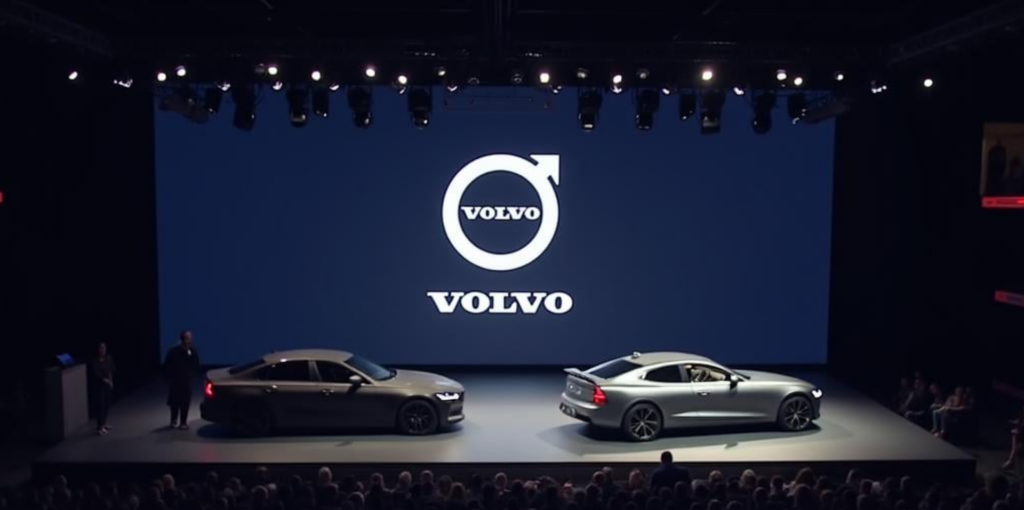

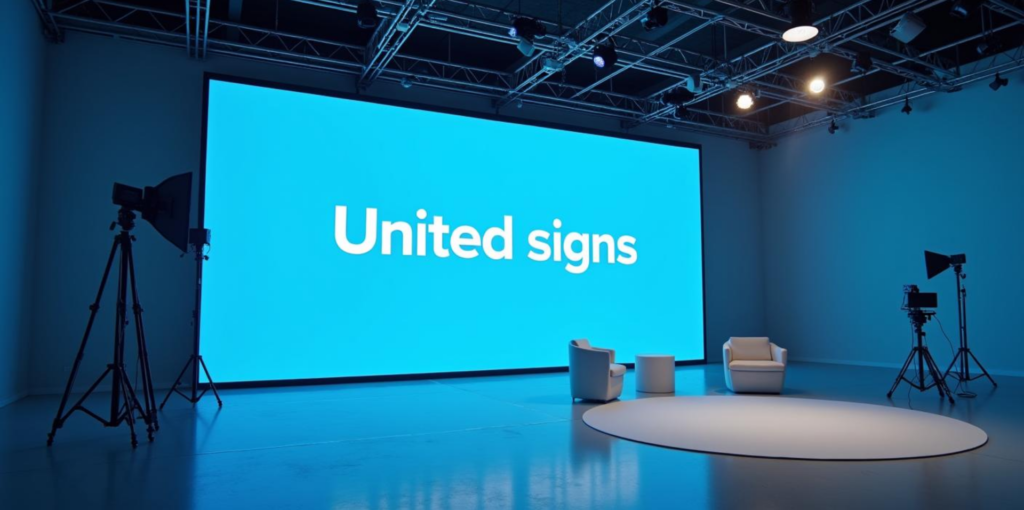

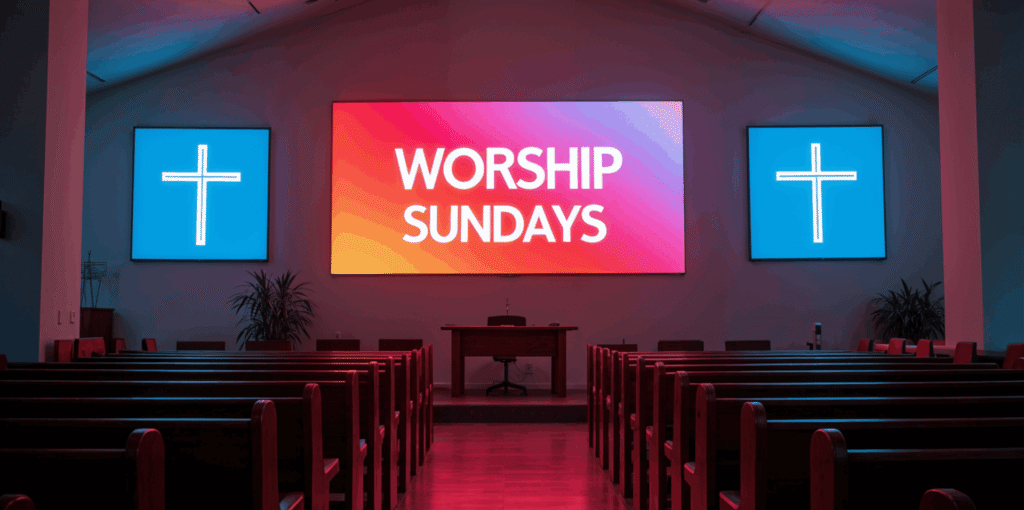

Where the Max Series Shines

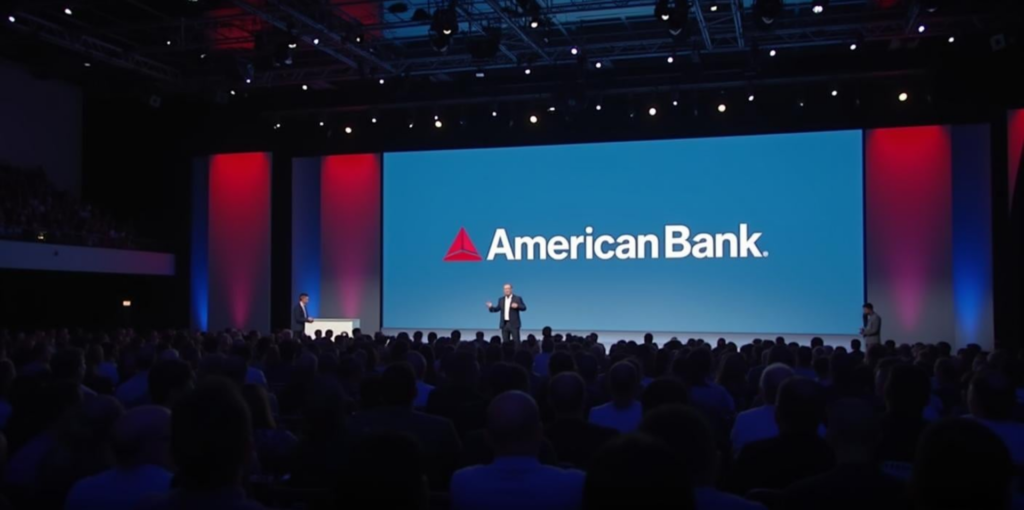

Max Series (P1.25/1.37/1.53/1.66/1.86/2/2.5/3/3.3/4) is the ideal choice for LED screens for indoor use. This series sports the same proportion of video source as LED screens — the most trusted recommendation for directly replacing LCDs. Suitable for corporate offices, control rooms, retail displays, stages, car shows, and large-format commercial environments.
Max Series Specifications
All specifications subject to change.
| Parameters | P1.25 | P1.37 | P1.53 | P1.66 | P1.86 | P2 | P2.5 | P3 | P3.3 | P4 |
|---|---|---|---|---|---|---|---|---|---|---|
| LED Encapsulation | SMD1010 (P1.25–P1.86) | SMD1212 (P1.66) | SMD1515 (P1.86–P2) | SMD2020 (P2.5–P4) | ||||||
| Driving Method | 1/64 | 1/52 | 1/52 | 1/48 | 1/43 | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 |
| Module Size (mm) | 320 × 160 × 15 | |||||||||
| Cabinet Size (mm) | 640 × 480 × 70 | |||||||||
| Working Voltage | DC 4.6V | |||||||||
| Max Consumption (W/mu00b2) | u2264 550 | |||||||||
| Ave Consumption (W/mu00b2) | u2264 180 | |||||||||
| Brightness (cd/mu00b2) | 450–800 (varies by pitch) | |||||||||
| Color Temperature | 6000K–8000K | |||||||||
| Viewing Angle | 120° / 120° | |||||||||
| Refresh Rate (Hz) | 1920–3840 | |||||||||
| Working Temperature | -20 ~ 50 °C | |||||||||
| Protection Degree | IP40 | |||||||||
| Greyscale | u2265 13 bit | |||||||||
| Aspect Ratios | 4:3 and 16:9 seamless assembly | |||||||||
| Cabinet Material | Lightweight die-casting aluminum |
