C-Pad

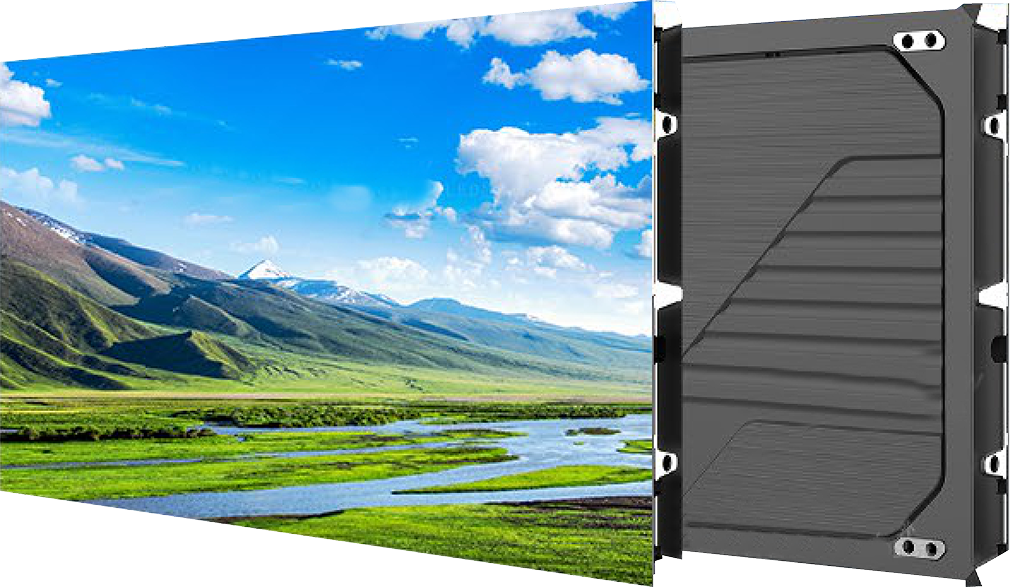

C-Pad-C Indoor LED HD Display
What Makes the C-Pad Different
Ready Stock in Warehouse
Face-to-face payment options are available. Ready stock ensures fast fulfilment for your project.

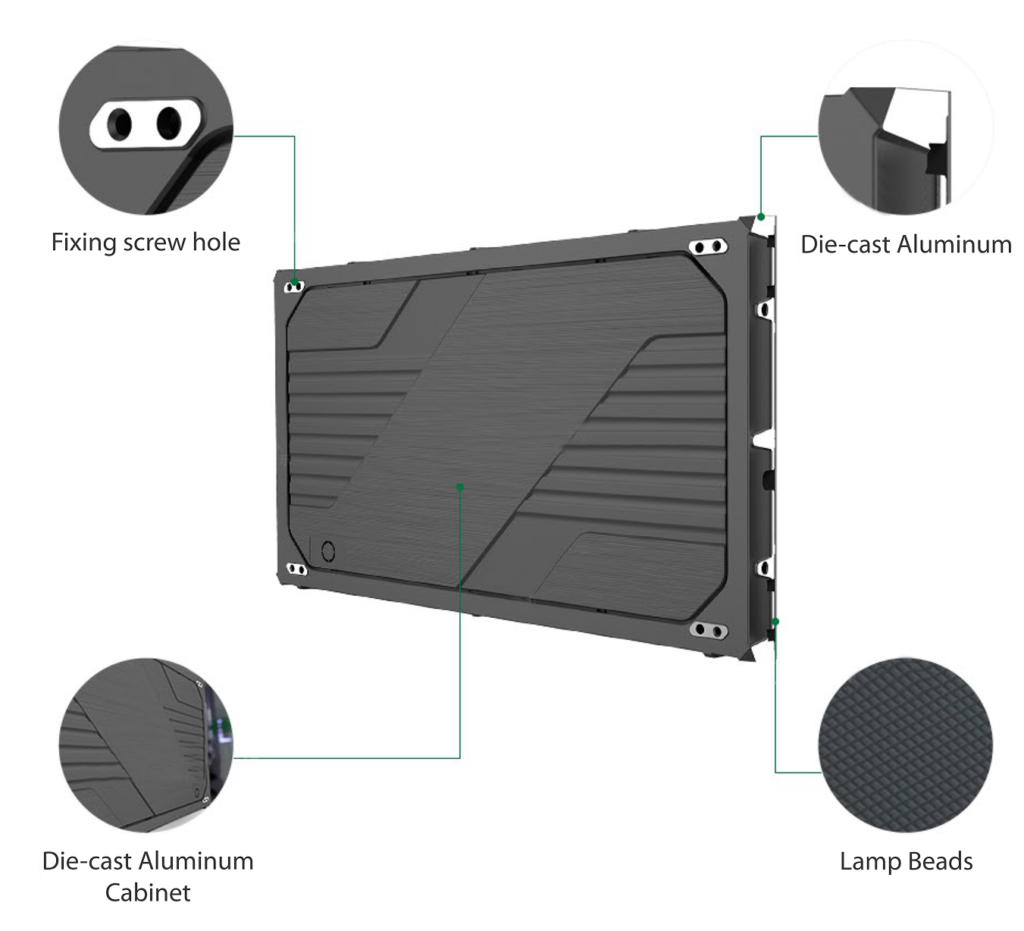

High Reliability COB Modules
COB modules provide superior heat dissipation and a longer chip life. Moisture proof, anti-collision, and a scrubable lamp surface maintain low power consumption and fast heat dissipation, effectively prolonging the service life of the chip.

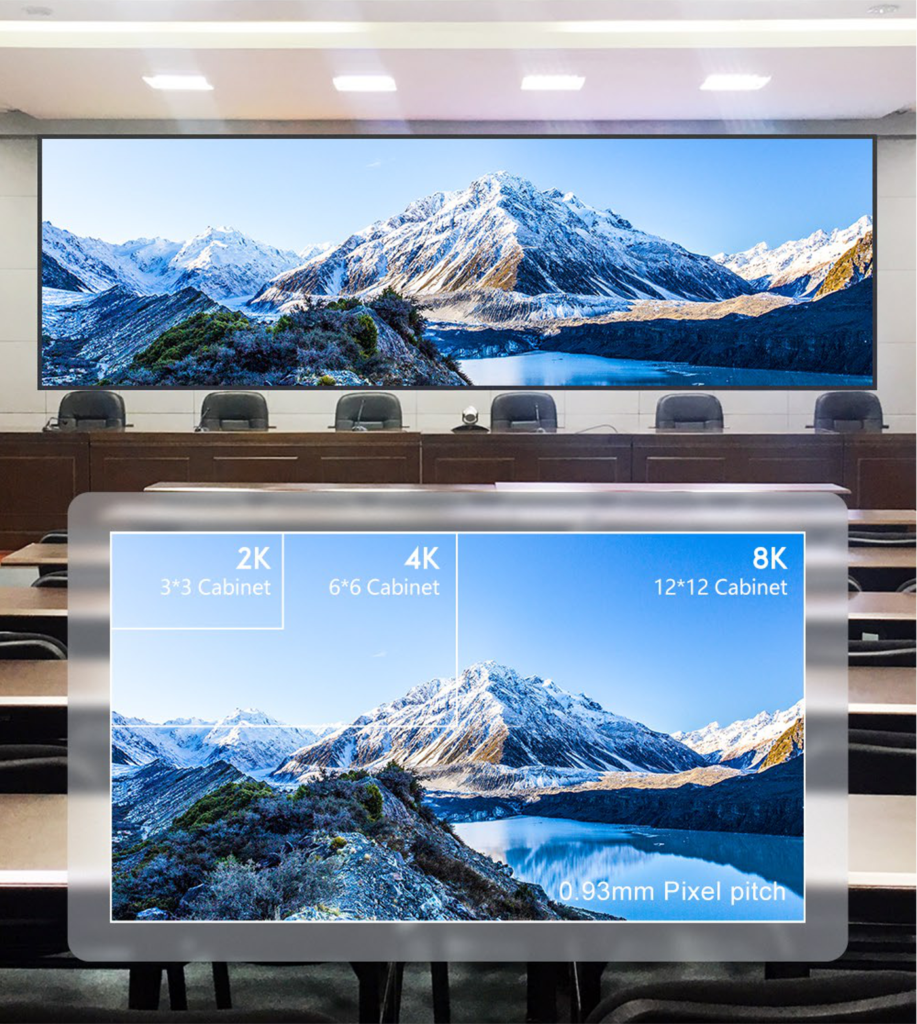

Good Consistency u2014 2K/4K/8K Ready
Good consistency and seamless assembly enables 2K, 4K, and 8K large-screen video wall solutions straight out of the box.
Wide Viewing Angle u2014 Wide Color Gamut
170u00b0 ultra-large horizontal and vertical viewing angle. High Sharpness. Soft and non-dazzling image from every seat in the room.

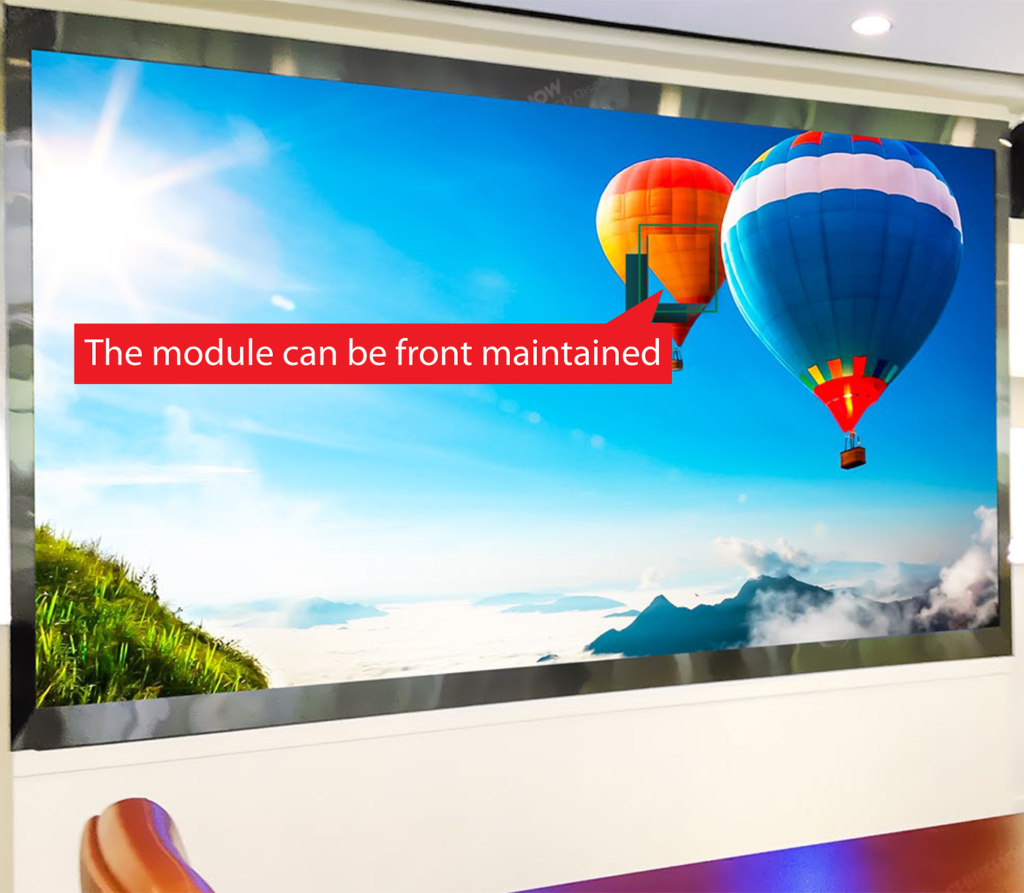

Magnetic Module u2014 Front Service
Modules can be quickly assembled and disassembled from the front. Wall-mounted installation saves space. Magnetic fixing makes routine maintenance fast and tool-free.
Every Display Includes Lifetime Benefits
5 Year Factory Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits of brightness
Training
We provide training on all aspects of the sign from maintenance to daily use
Content Creation
Our design team can help you create stunning templated designs
Multiple Communication Options
Hardwired, WiFi Modern, or Cellular Modem with a lifetime contract
60 FPS
Smooth full-motion video at 60 frames per second
Trillion of Colors
Full 24-bit color depth for lifelike, accurate color reproduction
24 Hour US Technical Support
No overseas time zone issues. Repository of training videos available on internet 24/7
Unlimited Software Seats/Licenses
Creative Library, Custom Content available, Corporate creative content portals
Where the C-Pad Shines

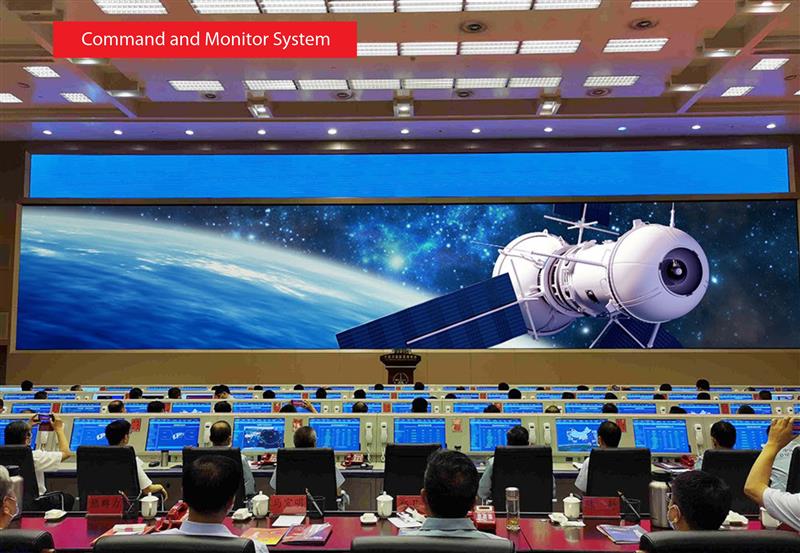

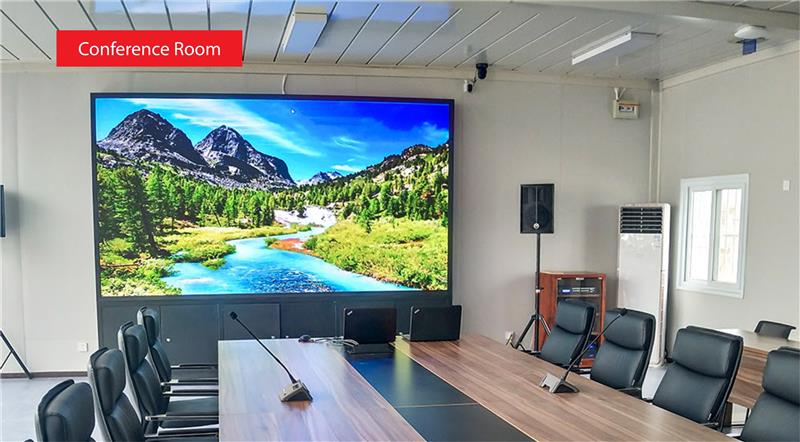

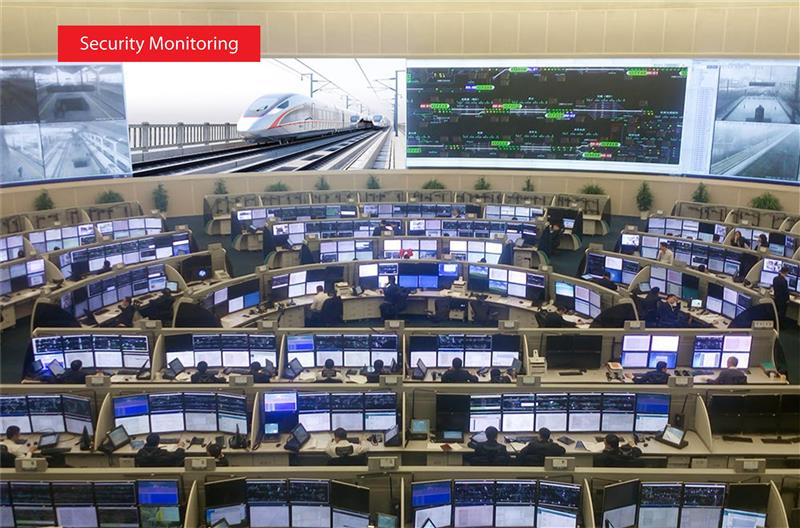

Widely applied to professional applications such as security monitoring, command and monitor systems, conference rooms, museums, displays, industrial design, and exhibitions where HD images are essential.
C-Pad Videos
C-Pad Specifications
All specifications subject to change.
| Parameters | C-Pad 0.9 | C-Pad 1.2 | C-Pad 1.5 | C-Pad 1.87 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Pixel Density (dots/mu00b2) | 1,137,777 | 640,000 | 409,600 | 284,444 |
| LED Encapsulation | Inverted COB | |||
| Driving Method | 54scan | 60scan | 54scan | 40scan |
| Resolution of Module | 160×180 | 120×135 | 96×108 | 80×90 (dots) |
| Module Size (mm) | 150 × 168.75 | |||
| Cabinet Size (mm) | 600×337.5 / 600×675 | |||
| Module Consumption (W) | 10 | 9 | 9 | 8 |
| Working Voltage (V) | 2.8/3.8 | 4.2 | 4.2 | 4.2 |
| Max Consumption (W/mu00b2) | 380 | 330 | 330 | 320 |
| Ave Consumption (W/mu00b2) | 125 | 110 | 110 | 110 |
| Brightness (cd/mu00b2) | 300–600 | |||
| Color Temperature (K) | 9300 | |||
| View Angle (H/V) | 160° / 160° | |||
| Refresh Rate (Hz) | 2880–3840 | |||
| Working Temperature (u00b0C) | -10 ~ 40 | |||
| Protection Degree | IP54 (Front & Back) | |||
| Greyscale (bit) | u2265 13 |
